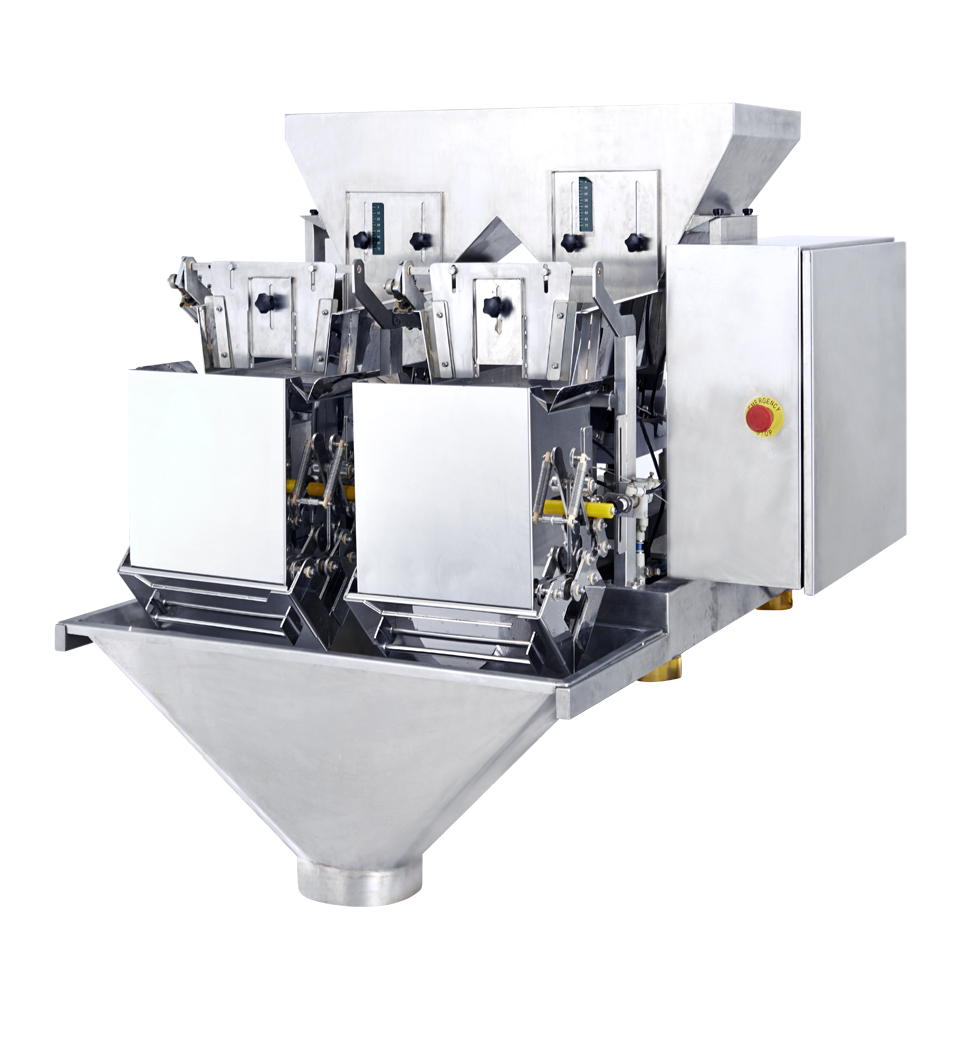

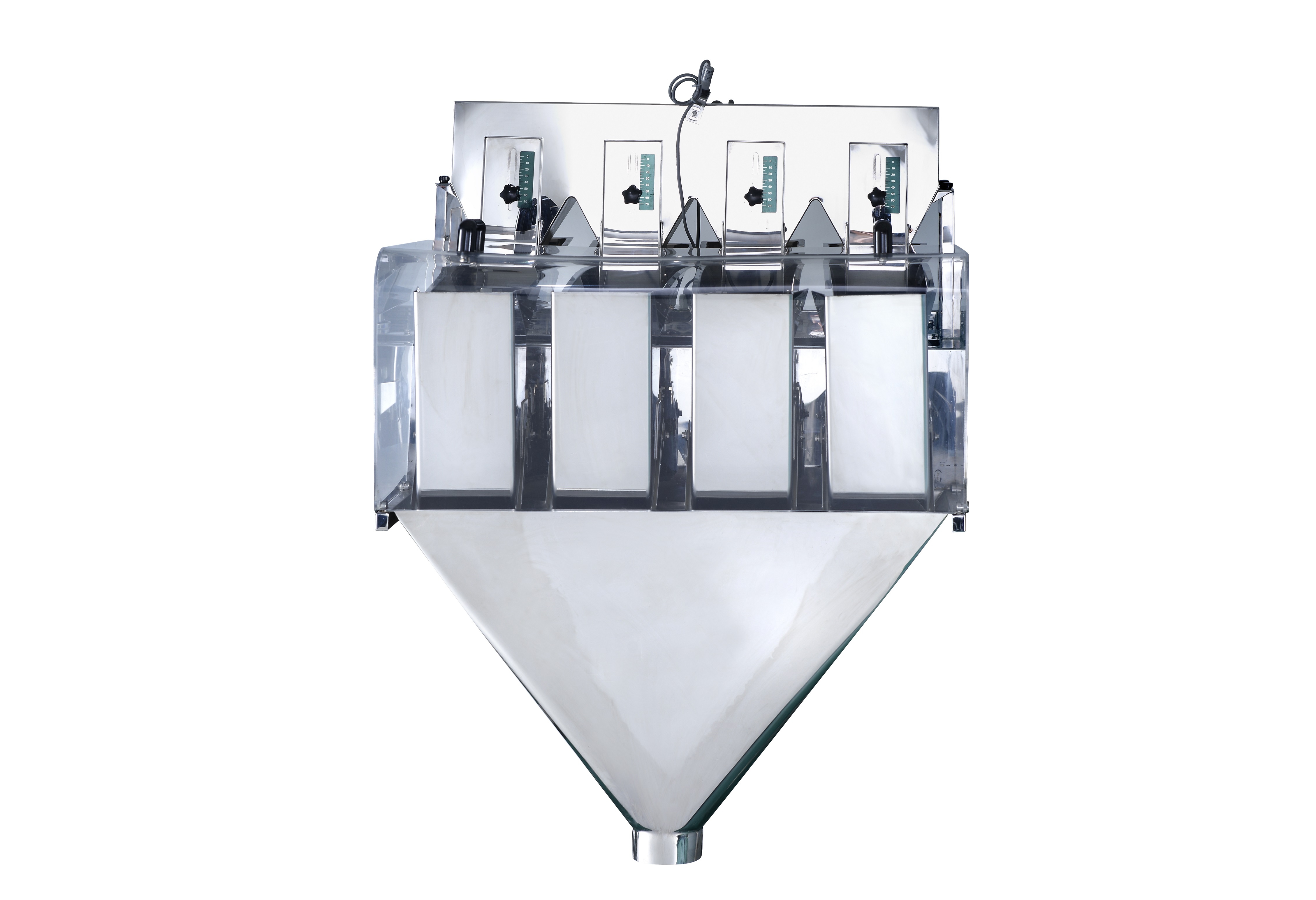

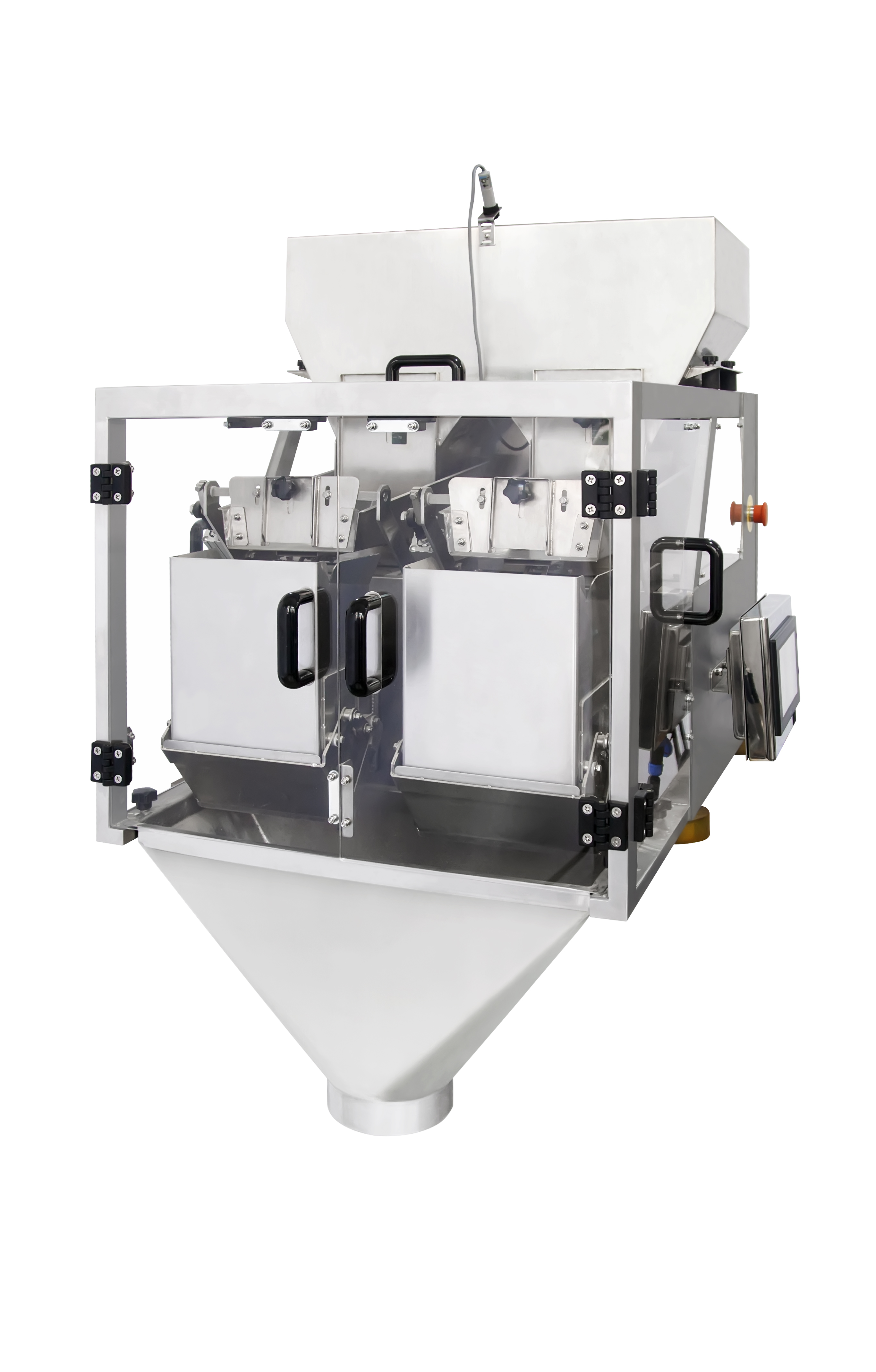

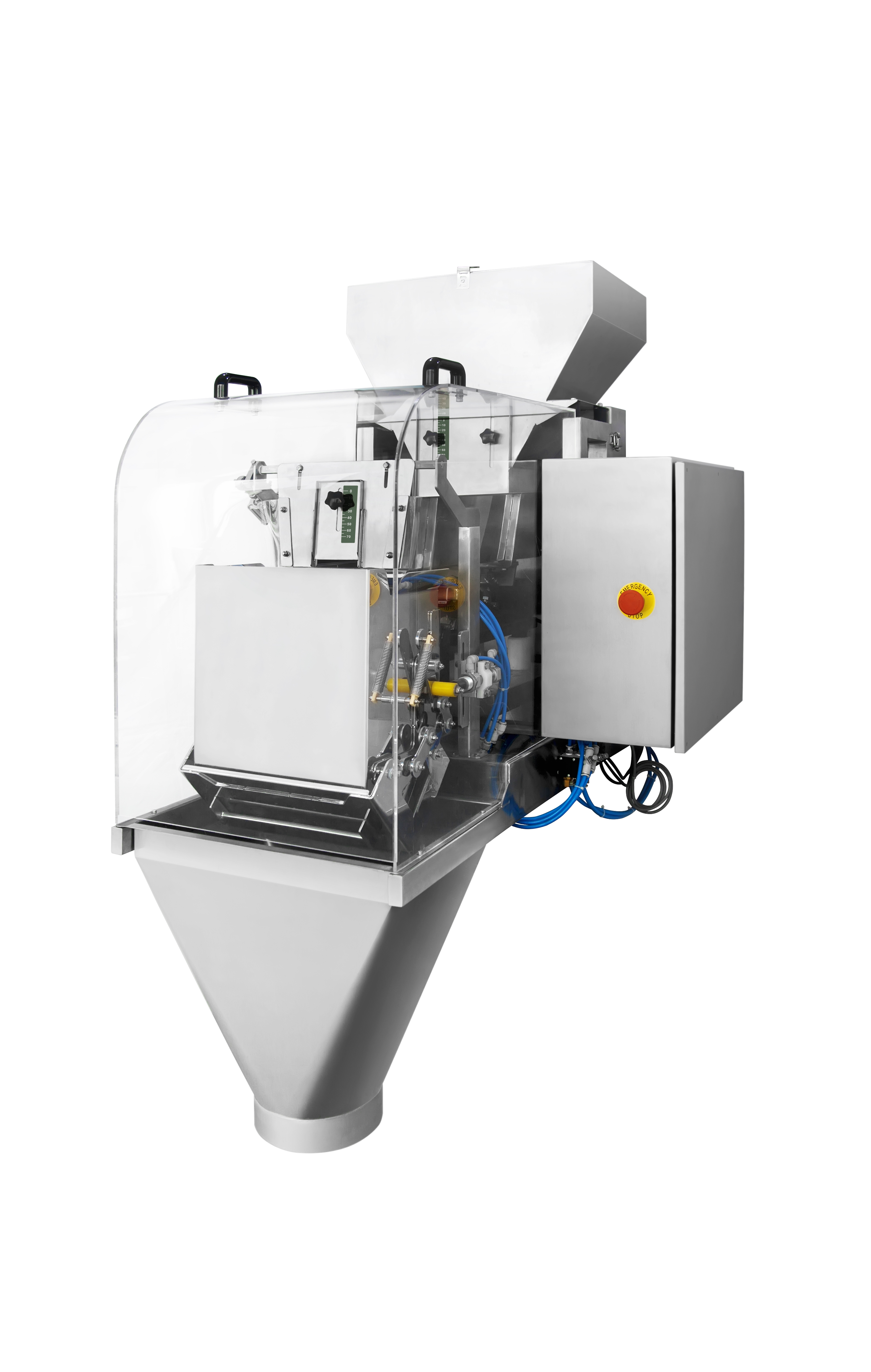

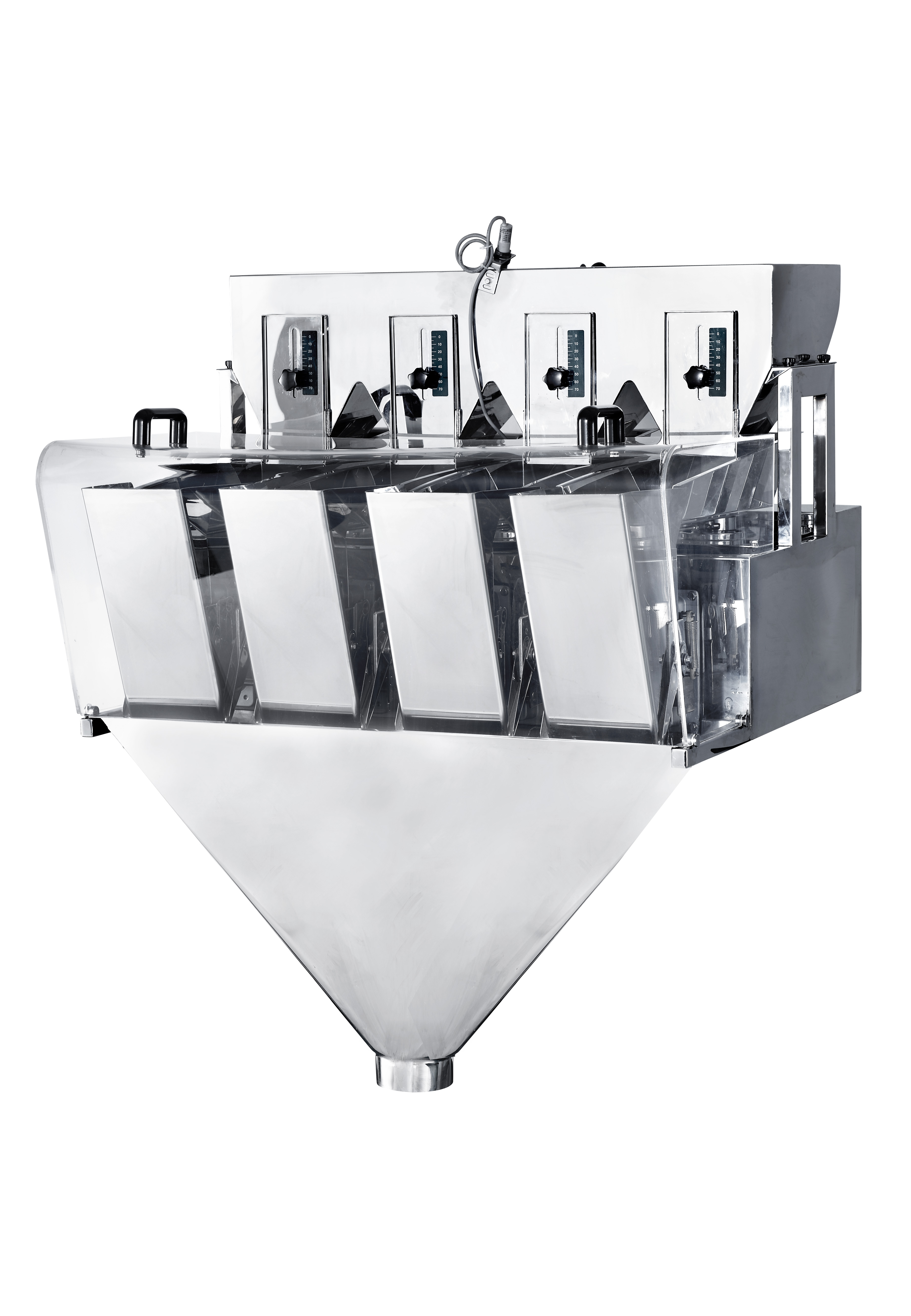

Combimat Linear Weighers

COMBIMAT LINEAR WEIGHERS

Offering excellent value for money, the Combimat linear weighers are the ideal solution for start-up packagers or where budgets are tight. Featuring a clear colour touchscreen with storage for 90 programmes and easily removable contact parts, they can be cleaned extremely quickly and switched over to a new product in no time. These are often used as stand-alone units for semi-automatic filling of pre-formed packaging, but are also equipped with synchronisation signals to be linked to a packaging machine.

COMBIMAT LINEAR WEIGHERS – APPLICATIONS

The range of applications for Combimat linear weighers is very diverse in both the food and non-food industries:

• Tea

• Coffee

• Rice

• Seeds

• Fertiliser pellets

• Chocolate sprinkles

• Cereals

• Pet food

• Muesli

• Popcorn

• Croutons

• Nuts

ADVANTAGES OF THE COMBIMAT LINEAR

The Combimat weighing machines from Laurijsen WeegAutomaten offer a wide range of benefits:

• 7″ colour touchscreen display in Dutch (also available in German, English and French)

• Simple operation for setting speed, weighing weight, opening times, etc.

• Storage for 90 programmes

• Easy to dismantle and clean without tools

• Synchronisation with all packaging machines

• Machine made entirely of stainless steel

• Bins opened by stepper motors

• Sensor in the hopper for starting and stopping the feed

• Cost-effective weigher for the novice packer

HOW THE COMBIMAT LINEAR WEIGHER WORKS

In the linear filling units, the product is transported from the central hopper to the weighing hopper via the vibrating chute. This cycle is divided into three phases with different vibration intensities in order to achieve an optimal product flow. At the end of the chute, a pneumatic valve reduces the product flow towards the end of the weighing cycle to ensure optimum accuracy.

DESIGN AND OPTIONS

All linear weighers are constructed from stainless steel and feature a modular design. All contact parts can be removed without the need for tools, and their compact dimensions ensure they can be easily installed in the production area. Naturally, synchronisation signals are provided to enable operation in conjunction with an automatic packaging machine, but it is also possible, as an option, to operate the weigher semi-automatically using a foot pedal. Furthermore, a sensor monitors the level in the hopper and triggers a signal when product needs to be added.

CONTROL

Operation is carried out entirely via a user-friendly 7″ colour touch screen with storage for 90 programmes. The comprehensive software features, amongst other things, weighing filters, password protection and comes as standard with various languages (including Dutch, English, German, French and Spanish).
