NewWeigh FreeFlow
Description

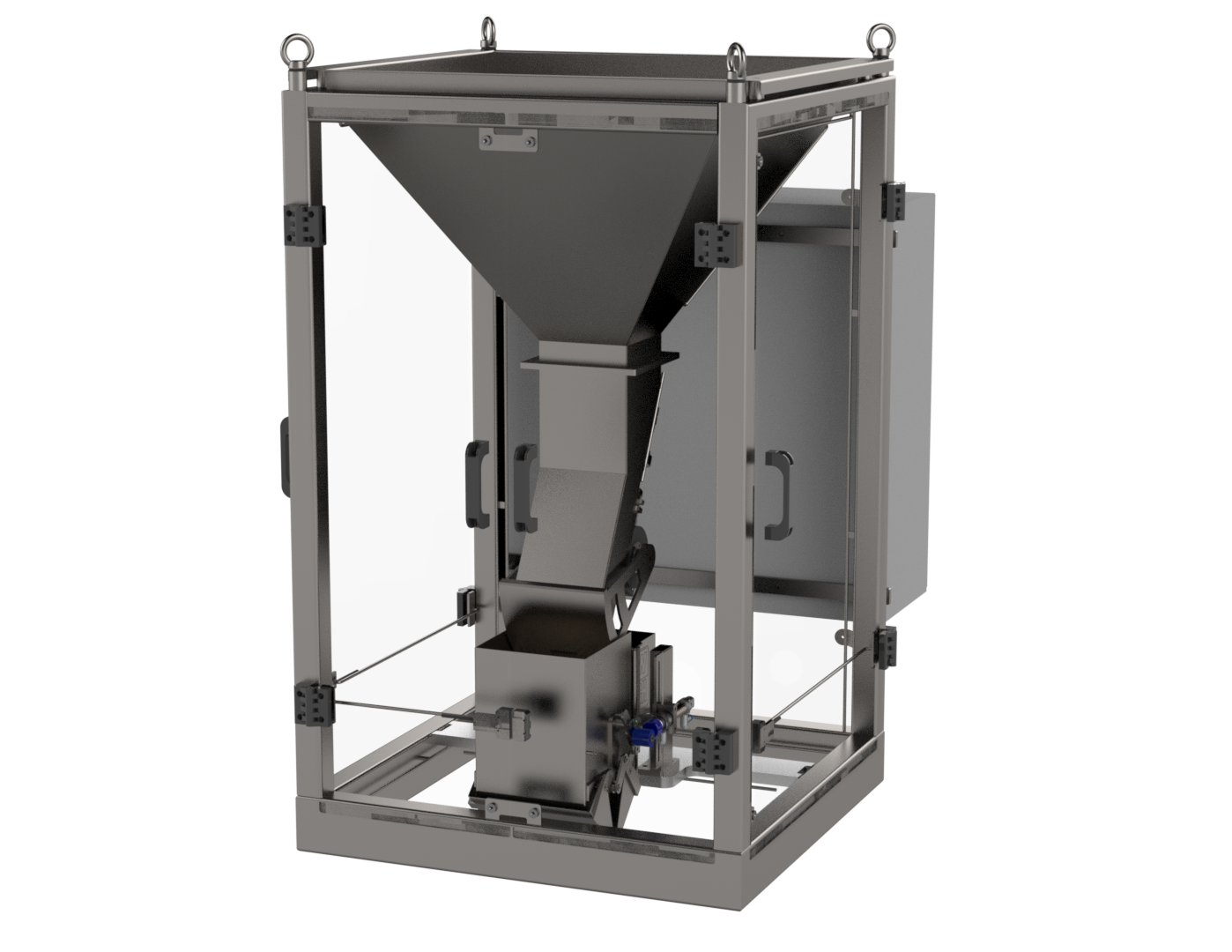

NEWWEIGH FREEFLOW
The NewWeigh FreeFlow weighers have been specially developed for free-flowing materials. As no vibrating chutes are used, there is very little dust generation and the footprint is extremely small. Optimal accuracy can be achieved using the servo-controlled dosing slide at the outlet of the hopper.
FREEFLOW APPLICATIONS
To be suitable for the FreeFlow, the product must flow freely under its own weight. This makes the weigher suitable for:
Rice
Discodip
Cat litter
Laundry detergent
Salt
HOW THE FREEFLOW WORKS
At the heart of the FreeFlow weigher is the servo-controlled product slide. This is positioned between the hopper and the weighing bin to regulate the product flow in the coarse and fine phases with great precision. As no vibrating chutes are used, dust generation and segregation are kept to a minimum. The weigher is also fitted with an enclosure, making it possible to install a dust extraction system.
DESIGN

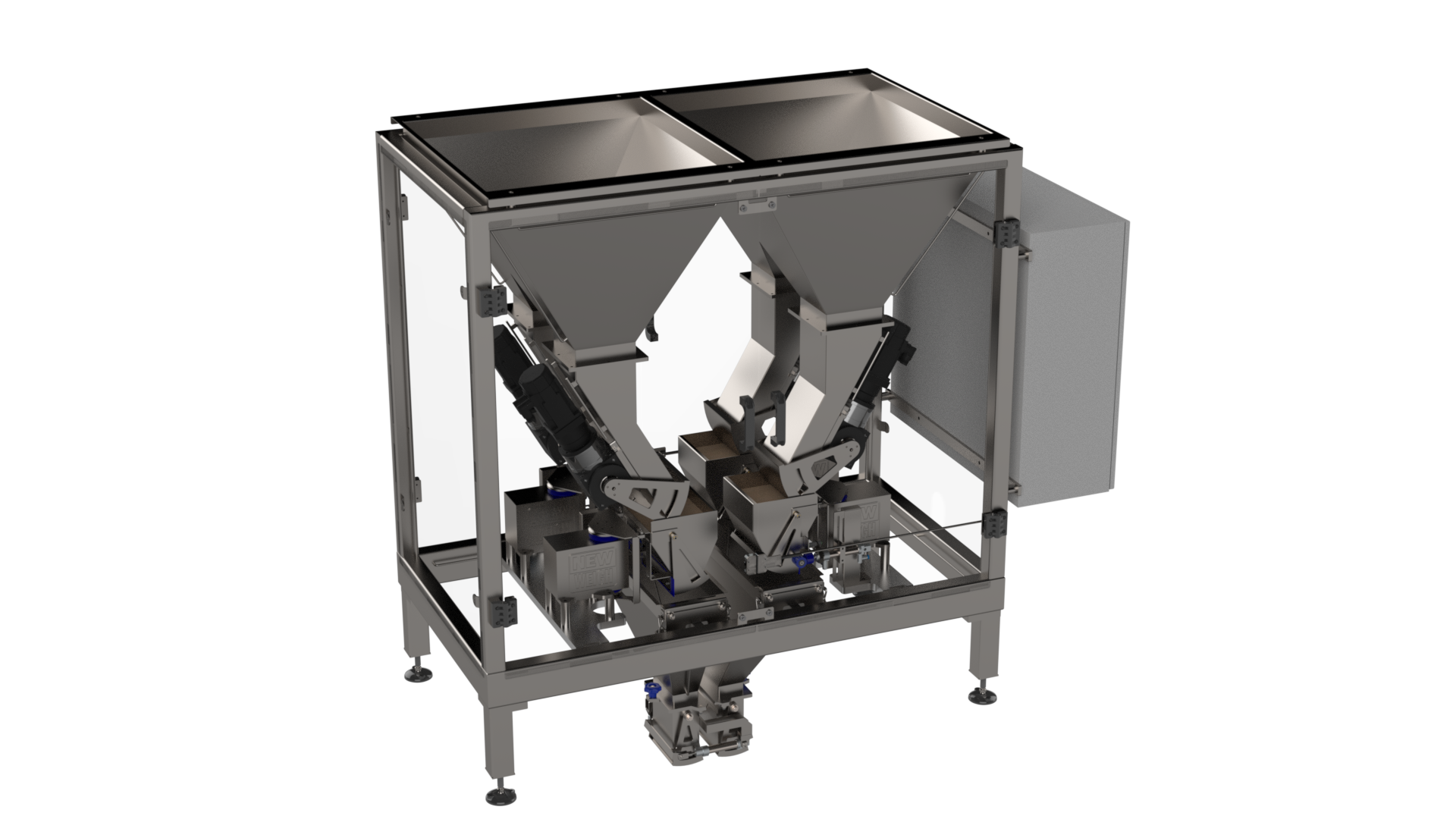

The NewWeigh FreeFlow is constructed entirely from 304 stainless steel and is also available in 316 stainless steel. The product flow can be further optimised by means of surface treatment (for example, with Teflon) and by creating an air flow. The servo motor is available in an ATEX-compliant version on request. The FreeFlow can be configured with 1, 2, 3, 4 or 6 weighing heads, for speeds of up to 80 weighings per minute.
CONTROL SYSTEM
NewWeigh weighing machines are equipped with a high-quality IPC control system featuring:
A user-friendly touchscreen control panel in various languages
Storage of 99 programmes, allowing for quick product changes
MID approval, making them suitable for calibration
An FTP server for storing all individual weights, which can be read remotely
